Should I use the hosted UI or create a custom UI in Amazon Cognito?

Amazon Cognito is an authentication, authorization, and user management service for your web and mobile applications. Your users can sign in directly through many different authentication methods, such as native accounts within Amazon Cognito or through a social login, such as Facebook, Amazon, or Google. You can also configure federation through a third-party OpenID Connect (OIDC) or SAML 2.0 identity provider (IdP).

Cognito user pools are user directories that provide sign-up and sign-in functions for your application users, including federated authentication capabilities. A Cognito user pool has two primary UI options:

Hosted UI — AWS hosts, preconfigures, maintains, and scales the UI, with a set of options that you can customize or configure for sign-up and sign-in for app users.
Custom UI — You configure a Cognito user pool with a completely custom UI by using the SDK. You are accountable for hosting, configuring, maintaining, and scaling your custom UI as a part of your responsibility in the AWS Shared Responsibility Model.

In this blog post, we will review the benefits of using the hosted UI or creating a custom UI with the SDK, as well as things to consider in determining which to choose for your application (app).

Hosted UI

Using the Cognito Hosted UI provides many benefits and features that can help you to quickly configure a UI for your app users. The hosted UI provides an OAuth 2.0 aligned authorization server, and it has a default implementation of end-user flows for sign-up and sign-in. Your application can redirect to the hosted UI, which will handle the user flows through the Authorization Code Grant flow. The hosted UI also supports sign-in through social providers and federation from OIDC-compliant and SAML 2.0 providers. Basic customizations are supported—for example, you can add multi-factor authentication (MFA) by adjusting the configuration of your Cognito user pool. The hosted UI supports brand-specific logos along with other UI design customization elements.

With the hosted UI, you have a set of preconfigured features that are designed to help you meet your compliance and security requirements as well as your users’ needs. The hosted UI allows for custom OAuth scopes and OAuth 2.0 flows. If you want single sign-on (SSO), you can use the hosted UI to support a single login across many app clients, which uses the browser session cookies for the same domain. For logging, actions are logged in AWS CloudTrail, and you can use the logs for audit and reactionary automation. The hosted UI also supports the full suite of advanced security features for Amazon Cognito. For additional protection, the hosted UI has support for AWS WAF integration and for AWS WAF CAPTCHA, which you can use to help protect your Cognito user pools from web-based attacks and unwanted bots.

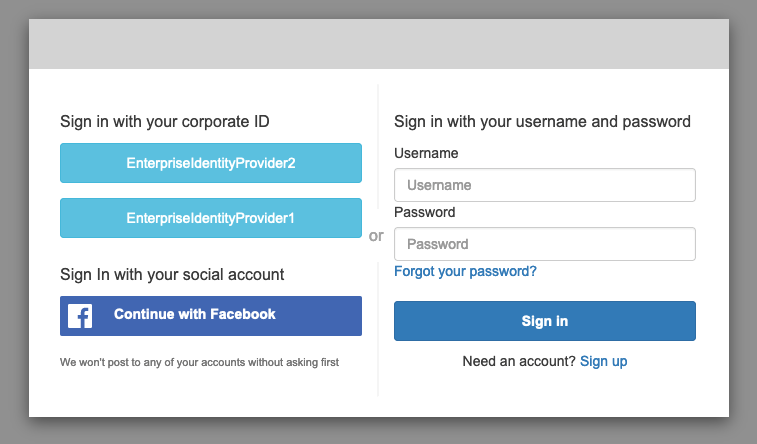

Figure 1: Example default hosted UI with several login providers enabled

For federation, the hosted UI supports federation from third-party IdPs that support OIDC and SAML 2.0, as well as social IdPs, as shown in Figure 1. Linking your federation source or sources occurs at the level of the Cognito user pool; this creates a simple button option for the app user to select the federation source, and redirection is automatic. If you are managing native SAML IdPs, you can also configure mapping by using the domain in the user’s email address. In this case, a single text field is visible to your app users to enter an email address, as shown in Figure 2, and the lookup and redirect to the appropriate SAML IdP is automatic, as described in Choosing SAML identity provider names.

Figure 2: Hosted UI that links to corporate IdP through an email domain

The Cognito hosted UI integrates directly with several other AWS services. When using the hosted UI, Amazon API Gateway and Application Load Balancer offer built-in enforcement points to evaluate access based on Cognito tokens and scopes. Additionally, AWS Amplify uses Amazon Cognito for user sign-up and sign-in under the hood.

You might choose to use the hosted UI for many reasons. AWS fully manages the hosting, maintenance, and scaling of the hosted UI, which can contribute to the speed of go-to-market for customers. If your app requires OAuth 2.0 custom scopes, federation, social login, or native users with simple but customized branding and potentially numerous Cognito user pools, you might benefit from using the hosted UI.

For more information about how to configure and use the hosted UI, see Using the Amazon Cognito hosted UI for sign-up and sign-in.

Create a custom UI

Creating a custom UI using the SDK for Cognito provides a host of benefits and features that can help you completely customize a UI for your app users. With a custom UI, you have complete control over the look and feel of the UI that your app users will land on, you can design your app to support multiple languages, and you can build and design custom authentication flows.

There are numerous features that are supported when you build a custom UI. As with the hosted UI, a custom UI supports logging of actions in CloudTrail, and you can use the logs for audit and reactionary automation. You can also create a custom authentication flow for your users to include additional methods of authentication beyond a traditional login flow with username and password.

Note: Device tracking and adaptive authentication are not compatible with custom authentication flows.

In a custom UI, you can adjust the session expiration configuration to less than one hour, and there is support for AWS WAF. A custom UI also supports several advanced security features.

Figure 3: Example of a custom user interface

For federation, a custom UI supports mapping to a specific IdP through the app user’s email domain for both SAML and OIDC IdPs. As with the hosted UI, you would design a single text field that is visible to your app users to enter an email address, and you can achieve the lookup and redirect to the appropriate SAML or OIDC IdP by following the steps at the bottom of the documentation page Choosing SAML identity provider names.

Figure 4: Custom UI example

When you build a custom UI, there is support for custom endpoints and proxies so that you have a wider range of options for management and consistency across app development as it relates to authentication. Having a custom UI, support is present for custom authentication flows, which gives you the ability to make customized challenge and response cycles to help you meet different requirements by using AWS Lambda triggers. For example, you could use it to implement OAuth 2.0 device grant flows. Lastly, a custom UI supports device fingerprinting where you might need it within the app or for authentication purposes.

You might choose to build a custom UI with the SDK where full customization is a requirement or where you want to incorporate customized authentication flows. A custom UI is a great choice if you aren’t required to use OAuth 2.0 flows and you are willing to take the time to develop a unique UI for your app users.

Decision criteria matrix

Although numerous features are supported by both the hosted UI and a custom UI, there are some unique differences that can help you determine which UI is best for your app needs. If your app requires OAuth 2.0 flows, custom OAuth scopes, the ability to login once across many Cognito app clients (SSO), or full use of the advanced security features, then we recommend that you use the hosted UI. However, if you want full customization of the UI, custom authentication flows, device fingerprinting, or reduced token expiration, then a custom UI is the better choice. These features target your app authentication requirements and customer experience and should take precedence over other considerations. You can use the following table to help select the best UI for your requirements.

Figure 5: Decision criteria matrix


In this post, you learned about using the hosted UI and creating a custom UI in Amazon Cognito and the many supported features and benefits of each. Each UI option targets a specific need, and you should consider which to choose based on your list of requirements for authentication and the user sign-up and sign-in experience. You can use the information outlined in this post as a reference as you add Amazon Cognito to your mobile and web apps for authentication.
