How to Create F.L.I.R.T Signature Using Yara Rules for Static Analysis of ELF Malware
It has been observed that ELF malware removes symbol information during its build. This creates extra work in malware analysis to identify each function name because you do not know them. In addition, in IDA, an analysis tool, existing F.L.I.R.T signatures [1] (hereafter abbreviated as FLIRT signatures in this article) are often not applicable to ELF malware functions, making analysis difficult when right signatures are not found.
This blog article describes how to identify function names using Yara rules. It also explains how to use “AutoYara4FLIRT,” an IDA script that automatically generates Yara rules for this method. The tool is available on GitHub, and you can download and use it from the following webpage.
JPCERTCC/AutoYara4FLIRT – GitHub
https://github.com/JPCERTCC/AutoYara4FLIRT
Problems in Static Analysis of ELF Malware

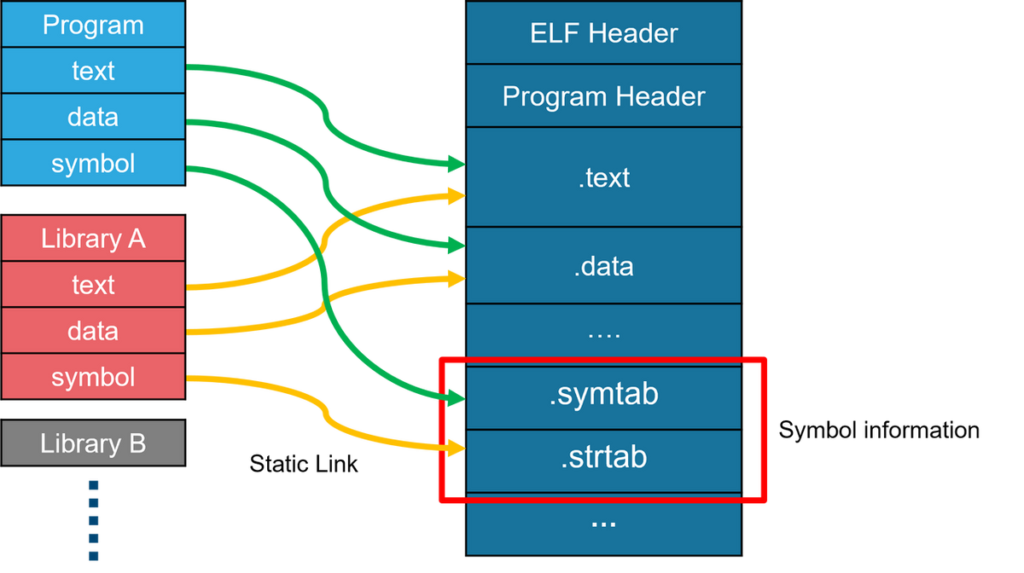

When a Linux program is built, each library is linked, and a single ELF binary is generated as shown in Figure 1. Information such as function names is generally stored in sections such as .symtab or .strtab. In the case of ELF malware, this section is removed by using the strip option at the time of its build. In ELF malware, by removing the symbols, the original function names are also lost for each statically linked library. This is problematic because it takes much more time to analyze.
Difficulty in finding the right FLIRT signatures
FLIRT signature is a feature that allows IDA to automatically identify existing libraries and function names. Without FLIRT signatures, when malware analysts find a complex function like shown in Figure 2, they would have a hard time understanding its behavior. However, if they know that the function is memcpy in advance, such analysis is not needed. With a FLIRT signature that includes the memcpy function, IDA can identify the function name, which saves time on analysis.
The FLIRT signatures that IDA includes by default do not match in most cases. Therefore, a proper FLIRT signature must be found or created. However, finding a suitable signature is very difficult because FLIRT signatures do not match even when compilation condition or library version is different. In the traditional method of creating FLIRT signatures, shown in Figure 3, differences in libraries and their versions, compiler versions, and compile conditions all affect the ELF binary to be generated. For this reason, it is difficult to find the right FLIRT signature without having those for various conditions.
How to create FLIRT signatures using Yara rules
Figure 1 shows the overview of this method. First, a Yara rule is created from the ELF malware. The rule is designed to search for ELF binaries that still contain symbol information. Next, use Retrohunt[2] on Virus Total with the above Yara rule to create a FLIRT signature (.sig) from the obtained ELF binary. The FLIRT signature is created from the Retrohunt-ed file based on the ELF malware, which is more likely to match with the target ELF malware.
In addition, to search for ELF binaries with remaining symbol information, the following condition needs to be added to the Yara rule.
import “elf”
rule Template{
condition:
for 2 i in (0 .. elf.number_of_sections) : (
((elf.sections[i].name == “.symtab”) and (elf.sections[i].type == elf.SHT_SYMTAB))
or ((elf.sections[i].name == “.strtab”) and (elf.sections[i].type == elf.SHT_STRTAB))
)
and
not ( for 1 i in (0 .. elf.number_of_sections) : (
((elf.sections[i].name == “.dynamic”) and (elf.sections[i].type == elf.SHT_DYNAMIC))
)
)
}
Evaluation results
We applied this method to 50 ELF malware on both x86 and ARM and used the created FLIRT signatures to resolve each function name. The result showed that, on average, FLIRT signatures can be created for about 60% of the functions in the x86 ELF malware and about 30% of those in the ARM ELF malware. Although we found that there were some exceptional cases in x86 ELF malware in which this method cannot be used well, the match rate was about 60% for most samples, and for some of them, the match rate was even over 90%. On the other hand, the match rate for ARM ELF malware was lower, indicating this method needs to be improved. Refer to Tables 1 and 2 in the Appendix for details of the results. The number of all functions in the target samples is defined as Total functions, and the number of functions matched by the FLIRT signatures created from the Retrohunt ELF binary is defined as Matched functions.
For sample selection, we obtained 300 ELF malware samples most recently uploaded to MalwareBazaar [3] as of November 2022. Then, 50 relevant samples for x86 and ARM architectures were selected. Therefore, the type of malware was not considered, but mirai, gafgyt, TSCookie, Coinminer, and others were included as the target when the method was evaluated. Please also note that the result is reference values since it varies depending on whether ELF binaries containing the target libraries are on Virus Total or not.
AutoYara4FLIRT, an automatic Yara rule generator for creating FLIRT signatures
In this method, Yara rules need to be created from ELF malware, and AutoYara4FLIRT is an automatic Yara rule generator. The tool was created as a plugin for IDA. To use AutoYara4FLIRT, move AutoYara4FLIRT.py to the IDA’s plugin folder, select AutoYara4FLIRT from the IDA plugin menu. A Yara file is generated in the same folder, and the results of the Yara file can be viewed on IDA. An example of executing AutoYara4FLIRT is shown in Figure 5.
Normally, Yara rules are created by figuring out strings and disassembler instruction sequences contained in the malware. AutoYara4FLIRT automatically generates Yara rules using the disassembler strings necessary for Yara rule creation. Since the extracted disassembler instruction sequence covers multiple statically linked libraries, it is extracted from multiple separated blocks, and in order to capture differences such as compiler conditions, the longest sequence among them is used. By Retrohunt-ing using the generated Yara rules, the ELF binaries with symbol information can be searched, which saves time and efforts when creating FLIRT signatures.
CLI automation tool to apply this method to multiple types of malware
To use this method for multiple types of malware, you can use the following CLI tool on the command line to automatically generate Yara rules at once. It is also possible to generate FLIRT signatures (.sig) at once for multiple ELF binaries that have been Retrohunt-ed based on Yara rules. Refer to the following link for more information.
JPCERTCC/AutoYara4FLIRT#CLI_AutoYara – GitHub
https://github.com/JPCERTCC/AutoYara4FLIRT#CLI_AutoYara
In the case of using other services than Virus Total
This method assumes that Retrohunt can be used and requires a paid account of Virus Total. However, by using the following services, you can search for files by Yara rules for free.
tria.ge yara
https://tria.ge/company/yara
Hybrid Analysis Advanced Search (YARA)
https://www.hybrid-analysis.com/yara-search
MalwareBazaar Hunting
https://bazaar.abuse.ch/hunting/
In Closing
This method can be used to create FLIRT signatures for ELF malware which is difficult to analyze statically because existing FLIRT signatures are not applicable. In addition to x86 and ARM, the method can also be used for x86-64 and MIPS, and thus we recommend trying it on a variety of ELF malware that has been difficult to analyze.
Yuma Masubuchi
Translated by Takumi Nakano
References
[1] F.L.I.R.T
https://hex-rays.com/products/ida/tech/flirt/
[2] Retrohunt
https://support.virustotal.com/hc/en-us/articles/360001293377-Retrohunt
[3] MalwareBazaar
https://bazaar.abuse.ch/
Appendix
No
Matched functions / Total functions (x86)
Match ratio(x86) [%]
1
82 / 141
58.2
2
193 / 3267
5.9
3
87 / 152
57.2
4
79 / 138
57.2
5
87 / 145
60.0
6
84 / 148
56.8
7
93 / 201
46.3
8
168 / 273
61.5
9
85 / 153
55.6
10
82 / 155
52.9
11
83 / 147
56.5
12
1 / 183
0.5
13
923 / 1006
91.7
14
87 / 146
59.6
15
85 / 153
55.6
16
93 / 176
52.8
17
83 / 149
55.7
18
83 / 149
55.7
19
1 / 161
0.6
20
96 / 175
54.9
21
1 / 162
0.6
22
82 / 147
55.8
23
1 / 163
0.6
24
86 / 157
54.8
25
95 / 154
61.7
26
93 / 205
45.4
27
132 / 204
64.7
28
89 / 152
58.6
29
85 / 153
55.6
30
83 / 159
52.2
31
82 / 151
54.3
32
87 / 146
59.6
33
84 / 145
57.9
34
96 / 161
59.6
35
81 / 142
57.0
36
129 / 197
65.5
37
82 / 147
55.8
38
85 / 151
56.3
39
128 / 214
59.8
40
136 / 214
63.6
41
1 / 162
0.6
42
168 / 271
62.0
43
82 / 139
59.0
44
128 / 207
61.8
45
84 / 142
59.2
46
78 / 148
52.7
47
133 / 204
65.2
48
1010 / 1342
75.3
49
1009 / 1336
75.5
50
1010 / 1336
75.6
–
Average
62.5
No
Matched functions / Total functions (ARM)
Match ratio (ARM) [%]
1
78 / 196
39.8
2
70 / 223
31.4
3
35 / 186
18.8
4
103 / 299
34.4
5
121 / 266
45.5
6
38 / 170
22.4
7
26 / 153
17.0
8
70 / 186
37.6
9
31 / 158
19.6
10
75 / 237
31.6
11
26 / 156
16.7
12
75 / 236
31.8
13
56 / 253
22.1
14
76 / 236
32.2
15
55 / 255
21.6
16
106 / 252
42.1
17
31 / 163
19.0
18
68 / 192
35.4
19
79 / 225
35.1
20
26 / 153
17.0
21
31 / 163
19.0
22
70 / 233
30.0
23
74 / 237
31.2
24
69 / 190
36.3
25
47 / 272
17.3
26
77 / 200
38.5
27
75 / 200
37.5
28
50 / 211
23.7
29
32 / 160
20.0
30
111 / 264
42.0
31
76 / 209
36.4
32
31 / 163
19.0
33
152 / 255
59.6
34
33 / 180
18.3
35
70 / 282
24.8
36
31 / 170
18.2
37
28 / 145
19.3
38
31 / 159
19.5
39
36 / 171
21.1
40
97 / 244
39.8
41
27 / 154
17.5
42
78 / 207
37.7
43
71 / 280
25.4
44
73 / 196
37.2
45
72 / 194
37.1
46
36 / 171
21.1
47
73 / 196
37.2
48
31 / 163
19.0
49
76 / 275
27.6
50
31 / 159
19.5
–
Average
28.4
